LED태양광매립등 (RB ZH104) |
|
|
 |
제품번호 |
: |
RB ZH104 |
|
사이즈 |
: |

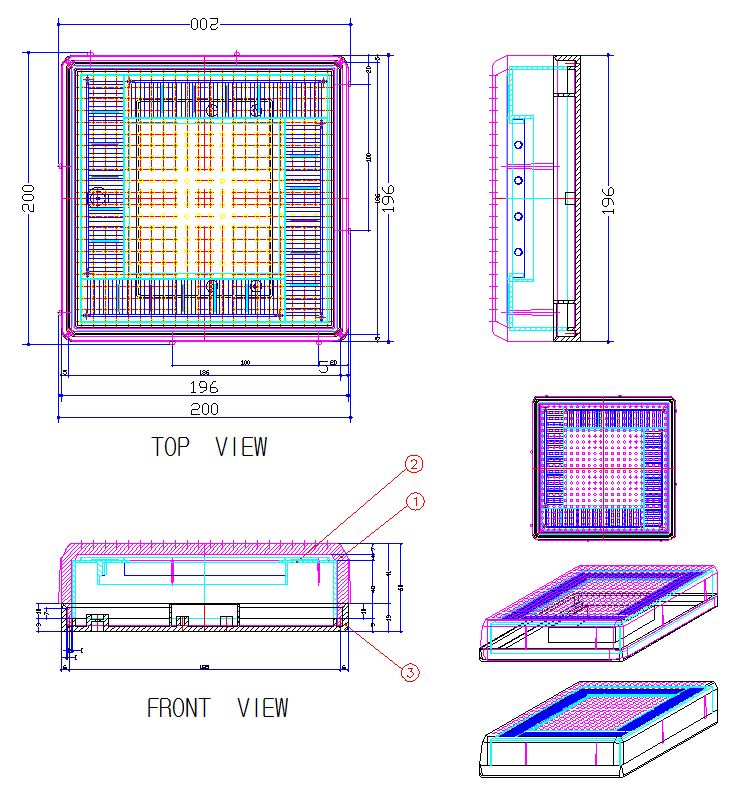

200 x 200 x 60 mm |
|
|
|
|
 |
|
|
|
 |
|
 나라장터 물품식별번호 : 22756195

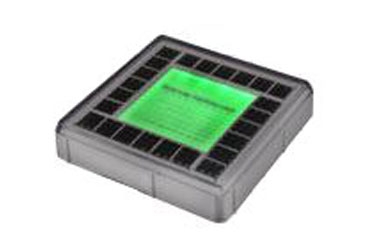

LED 태양광매립등 (RB ZH104) / LED경관조명기구
(※등기구 색상, 치수 등 사양이 조금 다를 수 있습니다)
| Single Crystalline Solar Cell |
Solar module Size
Solar Maximum Output Power
Solar Operating Current
Solar Voltage |
151 x 151 mm
2.173W
690mA
3.15V |
| LED |
LED Size
LED Current
LED Operating Current
LED Voltage
LED Wattage
LED Quantities |
5Ø
20mA per each
R O A(8.7mA), B G(5.4mA), W(6.8mA)
R Y O(2.5V), B W G(4.0V)
R Y O B G(0.022W), W(0.027W)
4pcs |
| Pseudocapacitor |
Pseudocapacitor
Number of Pseudocapacitor |
2.3V 120F
R G B Y A(4pcs), W(5pcs) |
| Poly Carbonate Housing |
T/C (Samyang, 3022-IR-01), B/C(Samyang, 3025R) |
| Electronic Controller |
MAIN PCB R O A BG W(SEIKO, AUK, ON SEMI), LED PCB |
|
|
|
|
|
|
|
